Product Description
| Process | Investment Casting + CNC Machining |
| Material | Stainless Steel |
| Color | Natural or Customized |
| Casting Surface Roughness | Ra 12.5μm |
| Casting Dimension Tolerance | CT7-CT8 |
| Weight Range | 0.1kg-100kg |
| Inspection | Dimension, Appearance, Visual Inspection of Surface Quality,
Mechanical Property |
| Nondestructive Testing(If needed) | X-Ray examination, Penetrant test |
Casting Process
Investment casting is also called lost wax casting, including
waxing, grouping, dipping, melting wax, casting molten metal and
post-treatment. Investment casting usually refers to forming a
pattern in a fusible material, and coating a plurality of layers of
refractory material on the surface of the pattern to form a shell,
and then melting the pattern to discharge the shell, thereby
obtaining a mold having no parting surface, and after high
temperature baking A casting scheme that can be filled with sand.
Lost wax casting is a wax mold in which a part is to be cast with
wax, and then the wax mold is coated with mud, which is a mud mold.
After the mud mold is dried, it is baked into a ceramic mold. Once
calcined, the wax mold is completely melted and lost, leaving only
the ceramic mold. In the general clay mold, the pouring port is
left, and the molten metal is poured from the pouring port. After
cooling, the required parts are prepared.
Production Process
● 3D Design
● Simulation
● Sample check and test
● Production process specification

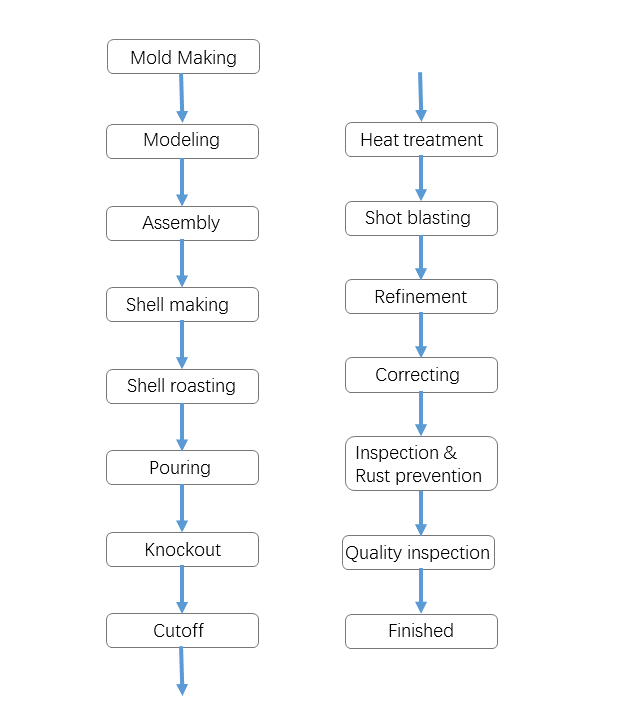

Process Flow:
The liquid metal → The filling → Solidification shrinkage → The
casting product
Quality Control
From raw material procurement, production, to finished product
delivery, each step is tested by professionals to ensure high
production efficiency and high quality products.
Testing facilities:
Spectrophotometer;
Tensile test machine;
Brinell's machine;
CMM (Coordinate Measuring Machine);
Metallographic experimental grinding and polishing machine;
Carbon Validation instrument;
Double tube carbon validation furnace;
Metallographic;
Universal hydraulic testing machine.
Packaging & Delivery
● Trade Term:
FOB, CFR, CIF, EXW
● Shipping Term:
By Air, Land, Sea;
● Shipping Package
1. Exported Standard pallets included carton package;
2. Exported Standard Wooden crate;
3. Do package as Customer required.
Why Rongbao
RongBao currently covers an area of 5000m2 of production and manufacturing base. Excellent equipment, safe
and tidy production workshop, good office environment to ensure the
high efficiency and high quality production.
With 14 years of production, import and export experience, good
after-sales service, we are dedicated to providing customers with a
wide range of high quality customized products.
Product Image
